Aikon F7 3030 V2.2 Octo Flight Controller
The Aikon flight controller is a new generation flight controller designed specifically to work with our Aikon 8-in-1 ESCs. We've packed all the greatest features into one seamless flight experience.
What makes the Aikon F7 amazing?
- 216mhz F7 processor
- 5 Software invertible hardware UARTS
- Onboard OSD and blackbox
- Software controlled VTX power switch (assigned to USER1 mode by default)
- LED and buzzer outputs (LED input doubles as PPM)
- Quick connection cable for 8-in-1 ESCs
- Quick connection cable for DJI HD system
- On-board high overhead voltage regulators rated up to 6S (50v peak to handle voltage spikes)
- 10v 1.5A voltage regulator for DJI HD system
- USB Type C connector for easy programming.
Aikon F7 Mini 45A All-In-One Flight Controller
The Aikon flight controller is a new generation flight controller and ESC combination specifically designed for cinewhoops and other high-current applications. We've packed all the greatest features into one seamless flight experience.
What makes the Aikon AIO Mini amazing?
- 216mhz F7 processor
- Idependent FC and ESC PCBs for low noise
- 5 Software invertible hardware UARTS
- Onboard OSD and blackbox
- Software controlled VTX power switch (assigned to USER1 mode by default)
- Connectors for DJI-HD and RC link
- LED and buzzer outputs (LED pad doubles as PPM)
- On-board high overhead voltage regulators rated up to 6S (50v peak to handle voltage spikes)
- 10v 1.5A voltage regulator for DJI HD system
- 3.3mm high current MOSFETs.
Aikon F7 60A All-In-One Flight Controller
The Aikon flight controller is a new generation flight controller and ESC combination specifically designed for cinewhoops and other high-current applications. We've packed all the greatest features into one seamless flight experience.
What makes the Aikon AIO amazing?
- 216mhz F7 processor
- 5 Software invertible hardware UARTS
- Onboard OSD and blackbox
- Software controlled VTX power switch (assigned to USER1 mode by default)
- LED and buzzer outputs (LED input doubles as PPM)
- On-board high overhead voltage regulators rated up to 6S (50v peak to handle voltage spikes)
- 10v 1.5A voltage regulator for DJI HD system
- Large 5x6mm high current MOSFETs.
Aikon F7 v2 Flight Controller
The Aikon flight controller is a new generation flight controller designed specifically to work with our Aikon 4-in-1 ESCs. We've packed all the greatest features into one seamless flight experience.
What makes the Aikon F7 amazing?
- 216mhz F7 processor
- 7 Software invertable hardware UARTS
- Onboard OSD and blackbox
- Software controlled VTX power switch
- LED and buzzer outputs (LED input doubles as PPM)
- Quick connection cable for 4-in-1 ESCs
- Quick connection cable for DJI HD system
- On-board high overhead voltage regulators rated up to 6S (50v peak to handle voltage spikes)
- 10v 1.5A voltage regulator for DJI HD system
- USB Type C connector for easy programming.
Aikon F7 Mini v3 Flight Controller
The Aikon F7 Mini v3 flight controller is a new generation flight controller designed specifically to work with our Aikon 4-in-1 ESCs as well as DJI's HD FPV system. We've packed all the greatest features into one seamless flight experience.
What makes the Aikon F7 amazing?
- 216mhz F7 processor
- 5 Software invertable hardware UARTS
- Onboard OSD and blackbox
- Software controlled VTX power switch
- LED outputs
- Quick connection cable for 4-in-1 ESCs
- On-board high overhead voltage regulators up to 6S (50v peak for voltage spikes)
- 10v 1.5A regulator for DJI HD system
- DJI Quick Connect Port
Aikon F7 Mini Flight Controller
The Aikon F7 Mini flight controller is a new generation flight controller designed specifically to work with our Aikon 4-in-1 ESCs. We've packed all the greatest features into one seamless flight experience.
What makes the Aikon F7 amazing?
- 216mhz F7 processor
- 5 Software invertable hardware UARTS
- Onboard OSD and blackbox
- Software controlled VTX power switch
- LED outputs
- Quick connection cable for 4-in-1 ESCs, works out of the box with the Aikon 4-in-1 ESCs
- On-board voltage regulator up to 6S
.png)
Aikon F7 Flight Controller
The Aikon F7 flight controller is a new generation flight controller designed specifically to work with our Aikon 4-in-1 ESCs. We've packed all the greatest features into one seamless flight experience.
What makes the Aikon F7 amazing?
- 216mhz F7 processor
- 5 Software invertable hardware UARTS
- Onboard OSD and blackbox
- Software controlled VTX power switch
- LED outputs
- Quick connection cable for 4-in-1 ESCs, works out of the box with the Aikon 4-in-1 ESCs
- On-board voltage regulator up to 6S
Aikon F4 Flight Controller
The Aikon flight controller is a new generation flight controller designed specifically to work with the Aikon AK32 4-in-1. We've packed all the greatest features into one seamless flight experience.
What makes the Aikon F4 amazing?
- 32khz capable
- 168mhz F4 processor
- Hardware UARTS:
- UART1 for SerialRX
- UART3 for S.PORT
- UART4 for ESC telemetry
- UART2 and UART3 available for general use
- Software serial:
- SOFTSERIAL1 for VTX control on TX1
- Onboard OSD and Blackbox
- LED outputs
- Conveniently located ESC signal ground and telemetry pads
- Quick connection cable for 4-in-1 ESCs, works out of the box with the Aikon AK32 4-in-1
- On-board voltage regulator up to 6S
.png)

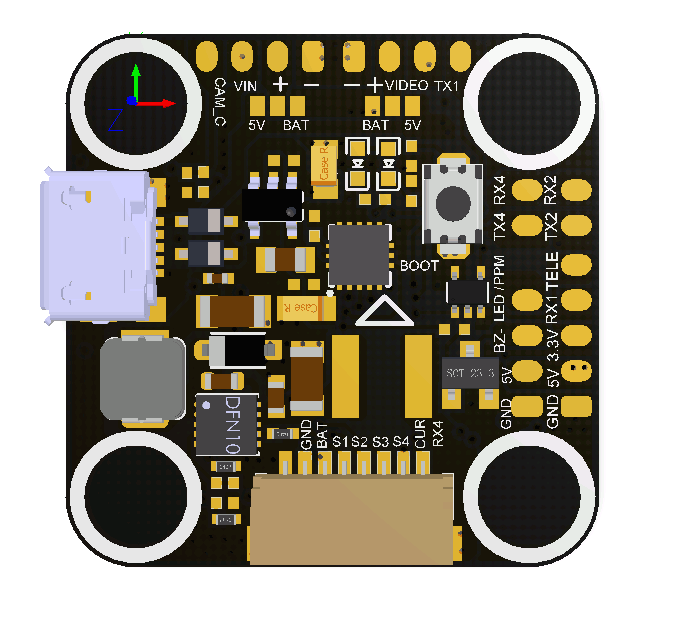

Aikon F42020 Flight Controller
The Aikon flight controller is a new generation flight controller designed specifically to work with the Aikon AK32PIN 4-in-1s. We've packed all the greatest features into one seamless flight experience.
What makes the Aikon F42020 amazing?
- 32khz capable
- 168mhz F4 processor
- Hardware UARTS:
- UART1 for SerialRX
- UART3 for S.PORT
- UART4 for ESC telemetry
- UART2 and UART3 available for general use
- Software serial:
- SOFTSERIAL1 for VTX control on TX1
- Onboard OSD and Blackbox
- LED outputs
- Conveniently located ESC signal ground and telemetry pads
- Quick connection cable for 4-in-1 ESCs, works out of the box with the Aikon AK32PIN 4-in-1s
- On-board voltage regulator up to 6S
