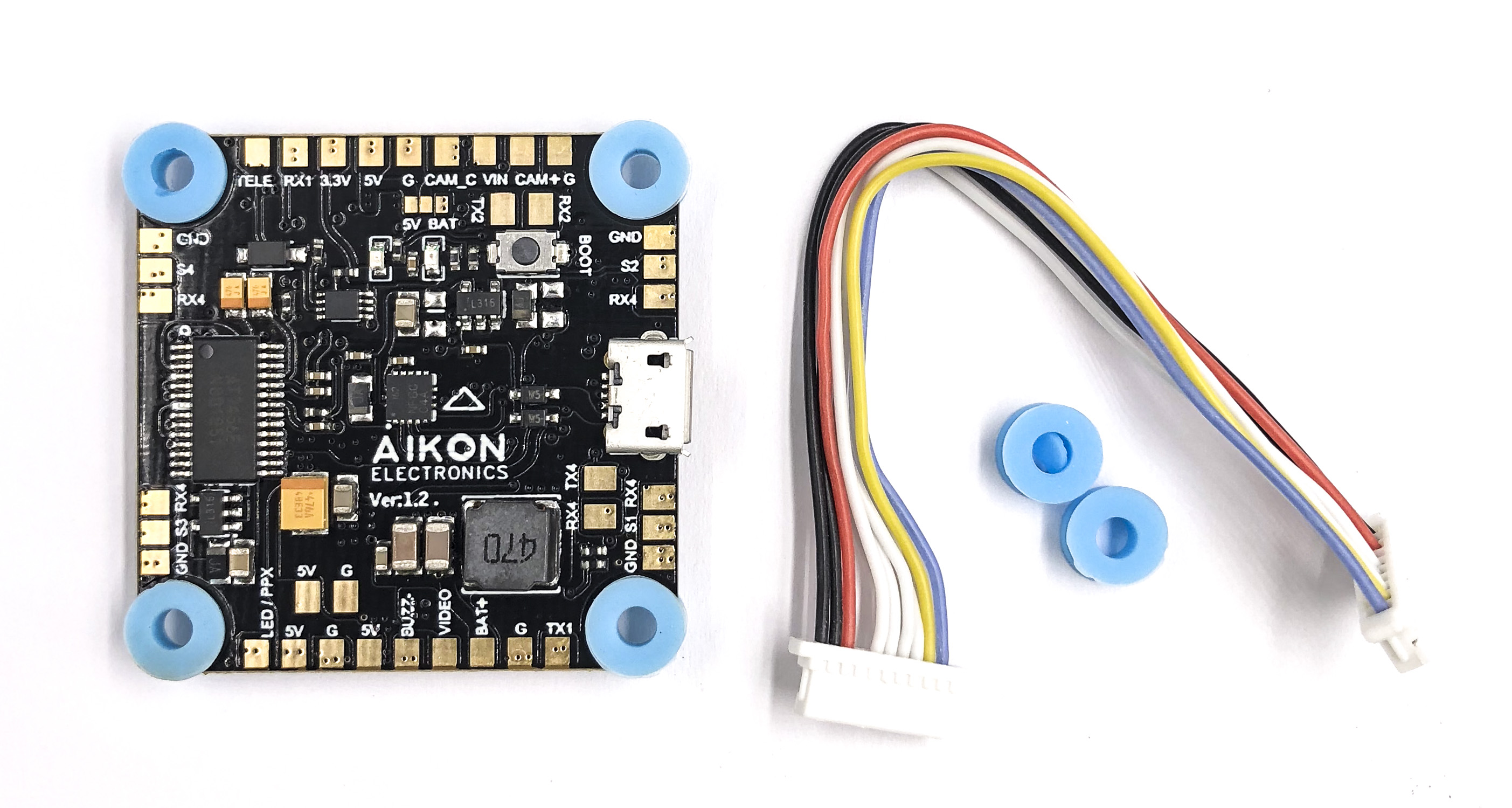

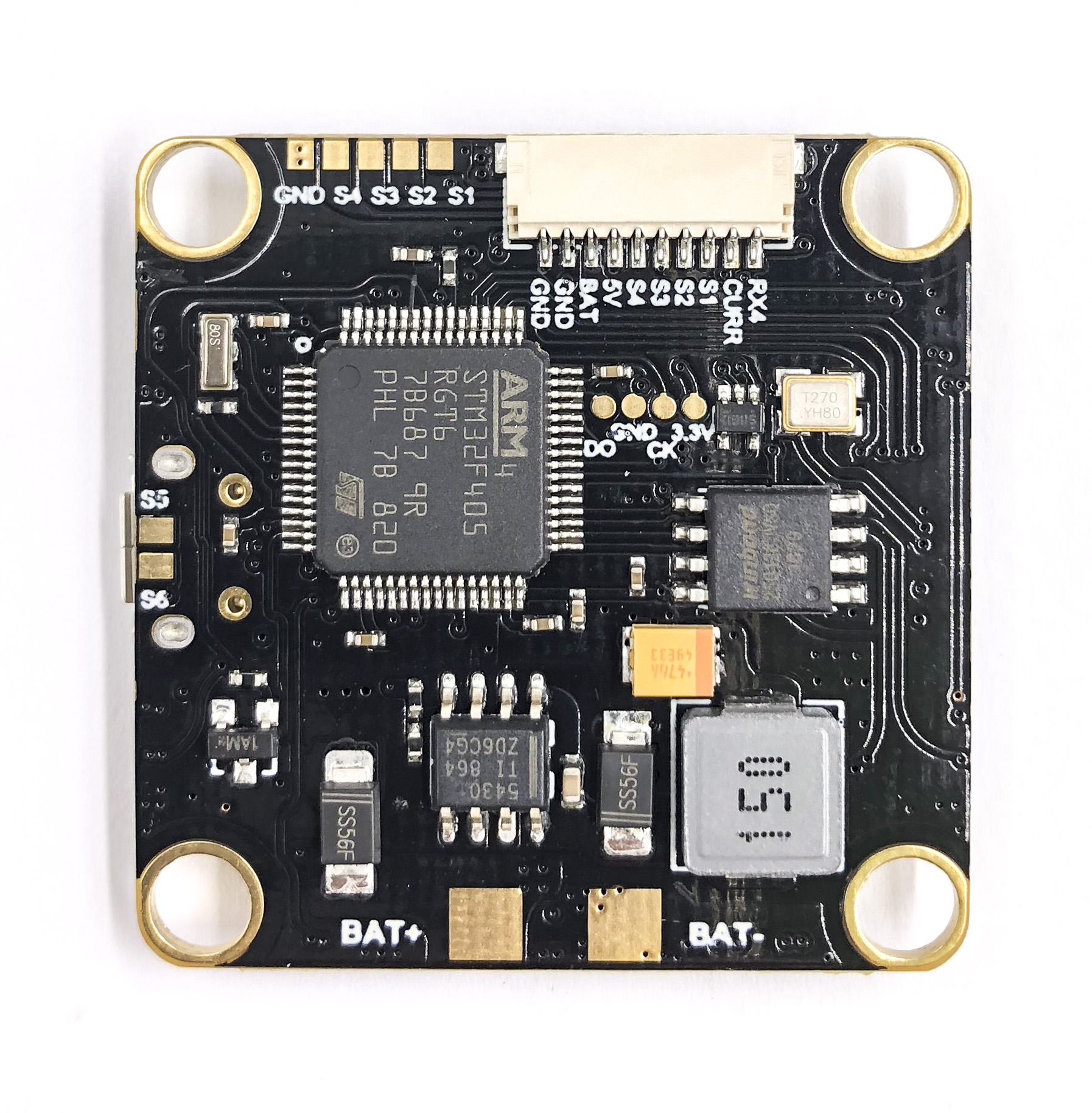

Aikon F43030 Flight Controller

The Aikon flight controller is a new generation flight controller designed specifically to work with the Aikon AK32 4-in-1. We've packed all the greatest features into one seamless flight experience.

Aikon F4 User Manual

What makes the Aikon F4 amazing?

• 32khz capable
• 168mhz F4 processor
• Hardware UARTS:
  • UART1 for SerialRX
  • UART3 for S.PORT
  • UART4 for ESC telemetry
  • UART2 available for CRSF or general use
• Software serial:
  • SOFTSERIAL1 for VTX control
• Onboard OSD and Blackbox
• LED outputs
• Conveniently located ESC signal ground and telemetry pads
• Quick connection cable for 4-in-1 ESCs, works out of the box with the Aikon AK32 4-in-1
• On-board voltage regulator up to 6S
